Contents | Prev | Next JDBCTM Guide: Getting Started


4 Scenarios for use

Before looking at specifics of the JDBC API, an understanding of typical use scenarios is helpful. There are two common scenarios that must be treated differently for our purposes: applets and applications.

4.1     Applets

The most publicized use of Java to date is for implementing applets that are downloaded over the net as parts of web documents. Among these will be database access applets, and these applets could use JDBC to get to databases.


For example, a user might download a Java applet that displays historical price graphs for a custom portfolio of stocks. This applet might access a relational database over the Internet to obtain the historical stock prices.

The most common use of applets may be across untrusted boundaries, e.g. fetching applets from another company on the Internet. Thus, this scenario might be called the "Internet" scenario. However, applets might also be downloaded on a local network where client machine security is still an issue.

Typical applets differ from traditional database applications in a number of ways:

4.2     Applications

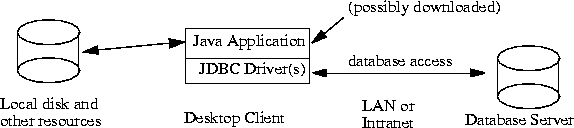

Java can also be used to build normal applications that run like any shrink-wrapped or custom application on a client machine. We believe this use of Java will become increasingly common as better tools become available for Java and as people recognize the improved programming productivity and other advantages of Java for application development. In this case the Java code is trusted and is allowed to read and write files, open network connections, etc., just like any other application code.


Perhaps the most common use of these Java applications will be within a company or on an "Intranet," so this might be called the Intranet scenario. For example, a company might implement all of its corporate applications in Java using GUI building tools that generate Java code for forms based on corporate data schemas. These applications would access corporate database servers on a local or wide area network. However, Java applications could also access databases through the Internet.

The Java application and "Intranet" cases differ from applets in a number of ways. For example, the most natural way to identify a database is typically for the user or application to specify a database name, e.g. "Customers" or "Personnel". The users will expect the system to locate the specific machine, DBMS, JDBC driver, and database.

4.3     Other scenarios

There are some other special cases of interest:

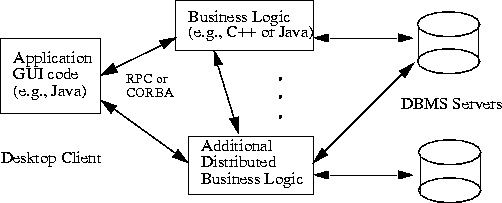

We expect that three-tier access will become more common because it is attractive to the MIS director to explicitly define the legal operations on their corporate data rather than allowing direct unrestricted updates to the DBMS servers. Also, the three-tier architecture can provide performance advantages in many cases.




Today, the middle tier is typically implemented in a language such as C or C++. With the introduction of optimizing compilers translating Java byte codes into efficient machine-specific code, the middle tier may practically be implemented in Java; Java has many valuable qualities (robustness, security, multi-threading) for these purposes. JDBC will be of use for this middle tier.

*As used on this web site, the terms "Java Virtual Machine" or "JVM" mean a virtual machine for the Java platform.


Contents | Prev | Next
1 For example, you could not depend on your database location or driver being in a .INI file or local registry on the client's machine, as in ODBC.
